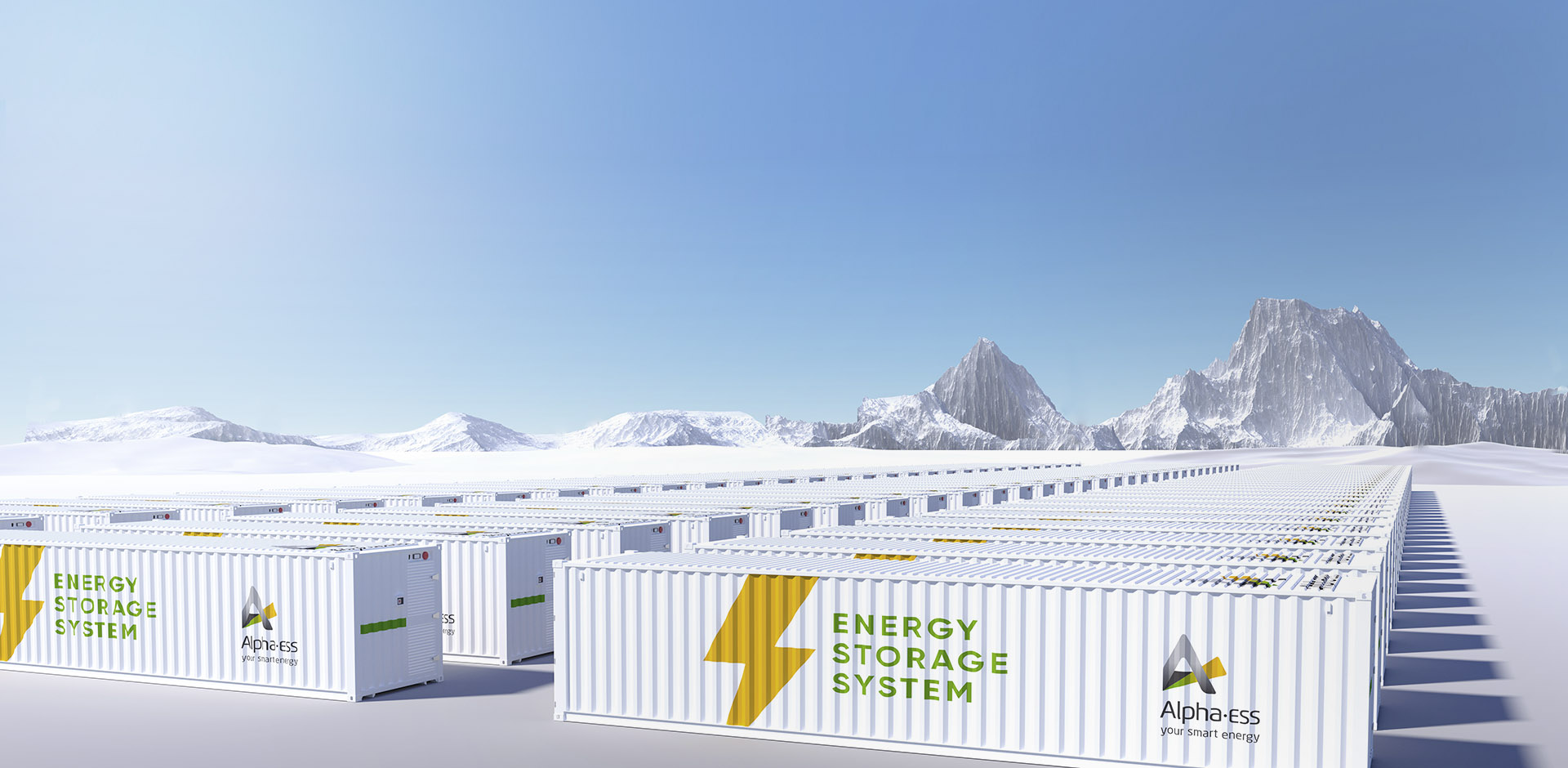

Alpha-CS
250 / 500 kW
Expandable to MWhs
Outdoor
-
Heavy-duty industrial application
-
Load Shifting
-
Off-grid Ability
-
Peak Shaving
-
Backup Function
-
Demand Charge Management
-
24/7 Monitoring
SPECS
System Specification
Nominal Output Power
500 kW
250 kW
Max. AC Power
550 kW
275 kW
Battery Chemistry
LFP（LiFePO4)
LFP（LiFePO4)
Application Environment
Outdoor (Container)
Outdoor (Container)
Warranty
3 Year Product Warranty, 10 Year Performance Warranty
3 Year Product Warranty, 10 Year Performance Warranty
Battery Specification
Module Model
Nominal Voltage
Module Capacity
Max. Charging/Discharging Rate
IP Protection
Cycle Life
Operating Temperature Range
-
Module Model
M48240-S
Nominal Voltage
48 V
Module Capacity
11.5 kWh
Max. Charging/Discharging Rate
5.75 kW (0.5P)
IP Protection
IP20
Cycle Life
≥ 6000
Operating Temperature Range
-10 °C ~ 50 °C
-
Module Model
M38210-S
Nominal Voltage
38.4 V
Module Capacity
8.1 kWh
Max. Charging/Discharging Rate
4.05 kW (0.5P)
IP Protection
IP20
Cycle Life
≥ 6000
Operating Temperature Range
-10 °C ~ 50 °C
-
Module Model
M48112-S
Nominal Voltage
51.2 V
Module Capacity
5.7 kWh
Max. Charging/Discharging Rate
5.7 kW (1P)
IP Protection
IP20
Cycle Life
≥ 6000
Operating Temperature Range
-10 °C ~ 50 °C
